Best RV Roof Vent Fan For Van Life

We’ve reviewed the best RV roof vent fans for campers and van life. Each of these fans  run off 12V DC power and fit into a standard 14” x 14” opening in the roof.

While all vent fans are going to make a difference in the amount of cooling in your vehicle, there are two brands that stand out among the rest: Maxxair and Fantastic Fan. Both have stellar reviews on Amazon.com and are the most popular fans on the market.

In our opinion, Maxxair edges out the Fantastic Fan. But there are quite a few models to compare. Check out the charts below to see features of the Maxxfan and Fan-tastic Fan.

At A Glance: Our Top RV Roof Vent Fans

campervan and rv roof vent fanmaxfann rv vent fan in a campervan conversion@moreysintransit | @faroutride

MaxxFan Comparison

Maxxfan Deluxe5301K6401K5100K6200K7000K7500K
Speed4410101010
ColorWhiteSmokeWhiteSmokeWhiteSmoke
Lid OpeningManualManualManualManualElectricElectric
Ceiling Controls
Thermostat
Built-in Rain Shield
Intake & Exhaust
Remote Control
$PricePricePricePricePricePrice

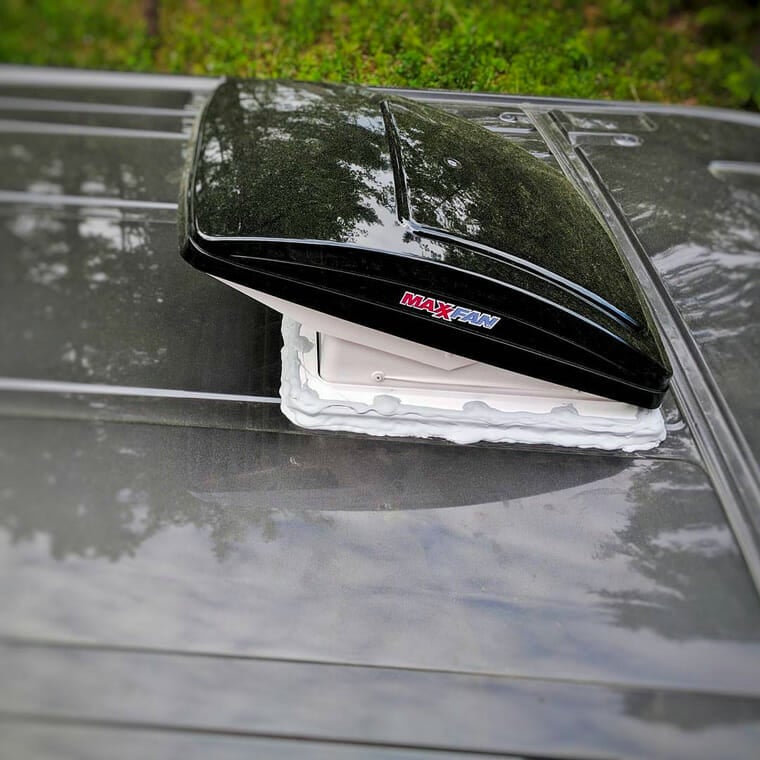

Our Pick ↠ Best RV Roof Vent Fan For Van Life: Maxxair 6200K

When it comes to vent fans, the Maxxair 6200k is the top-of the line manual model and comes with all the bells and whistles. The biggest difference between the Maxxair fan and the Fan-tastic line is the built-in rain cover preventing any moisture from getting inside.

The Maxxair line has 10 speed settings that can be adjusted via dial on the unit. With so many speeds, the fan runs quieter than others at the lowest speed. The highest setting will draw up to 5Amps of power with the lowest going down to 0.2Amps. It also has two lever arms that crank into position keeping the unit stable even in high winds.

Top Features At A Glance

  • Built-in rain cover
  • 10 Speeds
  • Lowest Amp draw

Check Maxxair Latest Price

The technology of the Maxxair is includes a temperature sensor that can be set to kick the fan on at a set temperature. The multi-directional blades are a big bonus for anyone doing high-intensity activities inside the van such as cooking because it will suck the moisture, smells and fumes right out.

Finally, Maxxair is a sleek, low-profile fan. You can expect this product to add 5” to the height of your vehicle when shut, and 9.3” when fully opened.

MaxxFan Amp Draw, Airflow & Decibels

Model 4000K, 4500K, 4700K, 4900K

SpeedAirflow (CFM)Current (Amps)Noise (dB-A)
12740.2332.0
23640.3233.0
34860.4836.2
45620.7042.6
56551.0242.8
67561.3848.7
78451.8351.5
89342.3658.0
910203.0156.0
1011584.2059.6

Model 4751KS, 4951KS, 4301K, 4401K

SpeedAirflow (CFM)Current (Amps)Noise (dB-A)
12740.2332.0
24860.4836.2
38451.8351.5
411584.2059.6

Things To Keep In Mind

There are not many complaints that can be found about the Maxxair vent fan models. Aside from the high price, one downside often discussed is the remote control (IR repeater) on electric models can sometimes get out of sync with the fan. This is especially noticeable if you are running a TV or another device that also uses an IR repeater remote.


Best Vent Fan For The Buck: Fantastic Fan 2250

The Fantastic vent fan 2250 has been a go-to fan for many van lifers because of its lower cost, durability and outstanding customer service. Although this fan does not have a built-in rain cover, Fantastic has many adaptor options for this purpose that can be added later if necessary.

Fantastic Fan12001250225033507350
Speed333313
Lid OpeningManualManualManualElectricElectric
Ceiling Controls
Thermostat
Rain Sensor
Intake & Exhaust
Exhaust Only
Remote Control
$PricePricePricePricePrice

Some of the other key differences between this model and the Maxxair are that this fan only has one crank arm holding it open which makes the fan more prone to rattling at high winds. It also only has 3 speed settings. The lowest speed of the Fantastic fan will be a bit louder than the lowest speed of the Maxxair RV vent fan for this reason.

Top Features At A Glance

  • Rain Sensor
  • 3 Speeds
  • Low Profile
  • Quietest

Check Fantastic Fan Latest Price

The Fantastic fan does have a temperature sensor allowing it to be automatically switched on and off depending on the temperature. The controls for this are directly on the device as it does not come with a remote control.

This fan is easy to install and will add about 4.5” of height to a vehicle when fully closed. Fantastic has a great warranty system, and the customer service is highly-rated.

Fantastic Fan Amp Draw

SpeedAirflow (CFM)Current (Amps)
14783.00
26532.29
39201.86

The Bottom Line: Maxxair vs Fantastic Fan

What are the biggest differences?

It’s difficult to compare the entire line of Maxxair Fans vs the Fan-tastic Fans because there are so many models to choose from. Instead we’ll compare the two manual models from each brand: Maxxair Fan 6200k and Fantastic Fan 2250.

Speed: The Maxxair has 10 speeds while the Fantastic Fan has 3 speeds. That means at lower speed settings, the Maxxfan will have a lower amp draw (under 0.5 amps). Meanwhile, the Fantastic fan draws 1Ah on the lowest setting.

Rain: Maxxfan is fully enclosed and can operate while propped up in the rain. The Fan-tastic Fan has a rain sensor to automatically close the lid when wet. You can mitigate the rain issue by purchasing a vent cover accessory for the Fantastic fan.

Noise: The Fan-tastic Fan is the quietest on the market.

Height: When fully closed, the Maxxfan will add approximately 5 inches to the top of your camper. The Fan-tastic fan will add 4.5 inches when closed making it the lower profile choice.

Best Low Budget RV Vent Fans:

We highly recommend purchasing either a Maxxair or Fan-tastic fan for your RV. That being said, any amount of airflow is going to make a world of difference when it comes to summer weather. The two options below: Heng’s and Vortex are also made to fit in a standard 14″ x 14″ opening. They will run a bit louder than our top choices and won’t have nearly the same amount of airflow but they are a decent choice for budget buyers.

Heng’s Camper Trailer Universal Roof Vent

Hengs RV Roof Vent FanHeng’s makes a solid product for anyone looking to do a budget build. Heng’s vent fans are a fraction of the price of most of the other fans on this list, but they also lack many of the features.

When buying a Heng’s fan you’re going to get a bare-bones model fan. The Heng’s universal fan comes with one speed, no remote control, rain cover or temperature sensor. The blades only run in one-direction. The fan does however get very good reviews and comes at a low price. The biggest complaint about this fan is that the plastic lid cover is not high-quality and can break or crack easily in hail or bad weather.

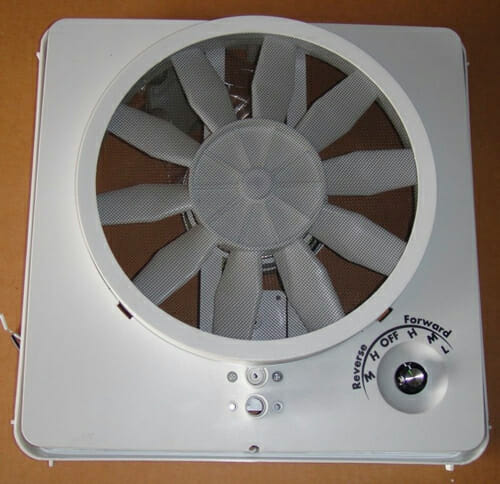

Vortex RV Roof Vent fan installationVortex II RV Roof Vent

The Vortex II RV Roof Vent is an upgrade kit meant to replace an older vent fan. This means along with the fan it will be necessary to purchase a vent cover. However, the kit does come with mounting hardware and can be used as a stand-alone device.

This fan is low priced for the number of features it offers including 3 speeds with a 2-speed reverse flow. It does not come with a remote control or temperature sensor either. The biggest complaint about this fan is that it runs a little loud and the switch control can be finicky.

Roof Vent Fan Insulators

While you don’t need much in the way of accessories, one product that we would like to point out is a vent insulator. This is essentially a piece of foam insulation designed to fit a 14″ x 14″ vent fan and reduce heat transfer. You’ll find it especially useful in the winter months when you want to prevent any drafts of cold air. Of course, you could make this item yourself, but they are quite inexpensive to purchase online.

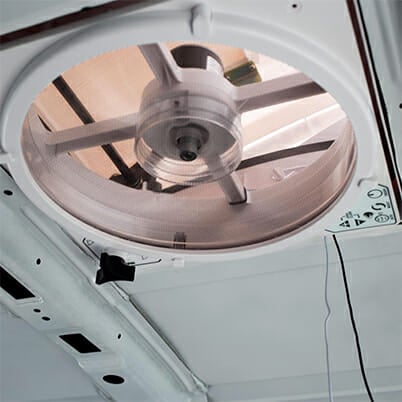

How To Install A Vent Fan In Your Camper Van

Even without a pre-cut hole in the roof, installing a vent fan in your DIY camper van conversion is a relatively straight forward process. It takes only a few tools and you’ll be able to complete the process in just a couple of hours or less. We’ve written a step-by-step guide complete with pictures to help you through this process.

How To Install A Vent Fan In Your RV

Why should you upgrade your RV vent fan? Factory installed vent fans are sub-par compared to the Maxxair or Fan-tastic fans. This is done as a cost-saving measure and you’ll find that standard fans do not produce the airflow of some of the higher end models.

Almost all motorhomes will come with a 14″ x 14″ ventilation fan built-in. That makes the installation and upgrade process significantly easier than starting from scratch.

  1. Start by unscrewing and removing the old vent fan and flange
  2. Using a handheld scraper, remove the old lap sealant around the edges of the previous fan
  3. Run butyl tape around the perimeter of the opening to create a gasket. If you purchased a Fan-tastic fan, a gasket comes provided (hint: it looks like foam packaging)
  4. Place the new flange into the existing hole
  5. Gently screw the corners in place, then go inside the RV to make sure everything is aligned correctly
  6. Using a digital multimeter, determine which of the existing wires are positive and negative
  7. Connect the new fan wiring to the existing fan wiring and give it a test run
  8. If everything is working properly, solder the wires together
  9. Install the interior frame
  10. Head back up to the roof and secure the remaining screws around the frame; do not overtighten!
  11. To weatherproof and completely seal any gaps, tape the perimeter of the vent fan using eternabond roof seal tape
  12. Apply pressure to the eternabond tape with a small roller
  13. With any extra seams, apply a thin bead of dicor lap sealant

Frequently Asked Questions

What is the difference between the Maxxfan Models?

The Maxxair fan models are designed in pairs. The pairs are exactly the same in design and features. The only difference is the color (smoke vs white).

  • 5301k & 6401k
  • 5100k & 5200k
  • 7000k & 7500k

What size wire should you use?

A 12AWG wire should be plenty to run your Maxxair or Fan-tastic fan. You can read more about determining wiring sizes in our post on wiring your camper van electric system.

Manual vs Electric vent fans

In a small vehicle or DIY camper van conversion, a manual vent fan will be more than sufficient. We recommend purchasing a vent fan with a remote and electric opener if you’re traveling in an RV with a high ceiling where it’s more difficult to reach.

Will these fans keep my pet cool in the RV all day during summer?

No! We do not recommend leaving a pet in your camper van or RV all day. A fan will not be sufficient in hot summer weather. These fans will significantly cool the interior of your vehicle but you should always be aware of radiant heat and temperature changes. Make frequent checks on your pet. Over time you will get a better idea of how your individual vehicle handles hot weather. Read our post on tips and tricks to stay cool in summer for more ideas.

Wrapping It Up

Both the Maxxair and Fantastic Fans are great choices when it comes to upgrading your RV vent fan. They are simple to install and will make a significant difference in the airflow and cooling abilities of your motorhome.

Continue Reading:


This Post Has 9 Comments
  1. Your table for the Maxxfan range doesn’t seem to make any sense.
    It has a red X on the remote control row for the 6200K but your text says it comes with one.
    Also the intake and exhaust and exhaust only rows are very confusion, it’s hard to understand which fan has each feature.
    It would be better if you just one line for intake and another for exhaust.
    You’ve got some double negatives going on with the current setup!

    1. Hey Fionn,

      Thanks for pointing out the discrepancies. I can see how that would be confusing! I’ve updated the chart to make the features easier to understand. Hope that helps!

  2. Good info. However, it seems that the current draw for the Fan-tastic fan may be in reverse order (I would expect 3 amps for the highest setting, not the lowest). Also, it appears that the Fan-tastic fan data may be from their website. If so, have you tried to measure it yourself using the same method that you used for the Maxx fans? Thanks for posting.
