Best RV Solar Panel Kits

  • By Kate Moore
  • on
  • This post may contain affiliate links. As an Amazon Associate, I earn from qualifying purchases. Please read my full disclosure.

If you’ve ever wanted to take an RV off-grid, then the first thing you need to consider is power.

But if you’re new to solar energy, you may be wondering which type of RV solar panel kit is the best. After all, there are many different sizes and types of panels out there, and the choice can be overwhelming.

The good news is that we’ve done the research for you! In this article we’ll tell you everything you need to know about RV solar panels and help you decide which one to buy.

BEST KIT WITH BATTERIES

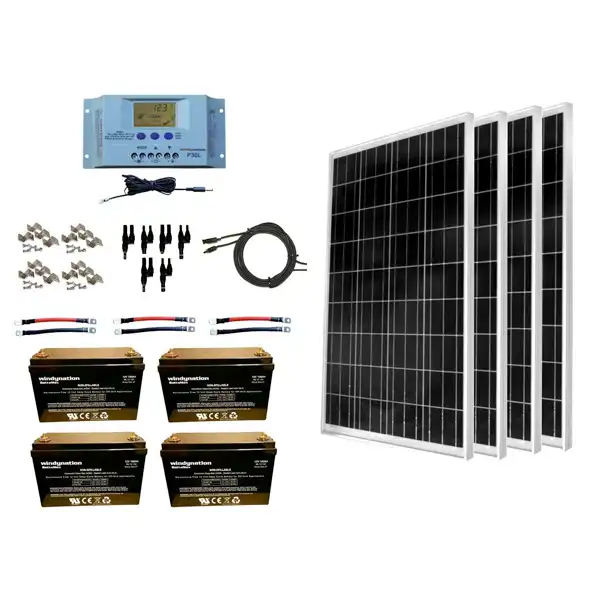

400W WindyNation Solar Kit with Batteries
  • 100W (x4) Solar Panels
  • 30A PWM Charge Controller
  • 40ft. Solar cable, MC4 connectors, mounting brackets
  • 100Ah (x4) AGM Deep Cycle Batteries
CHECK LATEST PRICE

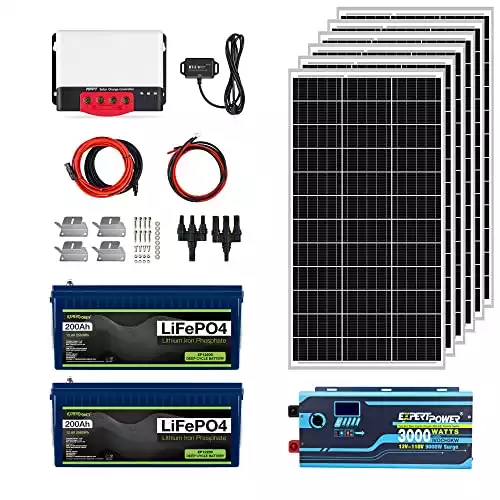

ExpertPower
600W Solar Power Kit
  • 600 W Monocrystalline panels
  • 2x 12V200Ah LiFePO4 batteries
  • 3000W Pure Sine Wave Inverter Charger
  • 40A MPPT Solar Charge Controller
CHECK LATEST PRICE
BEST LARGE KIT

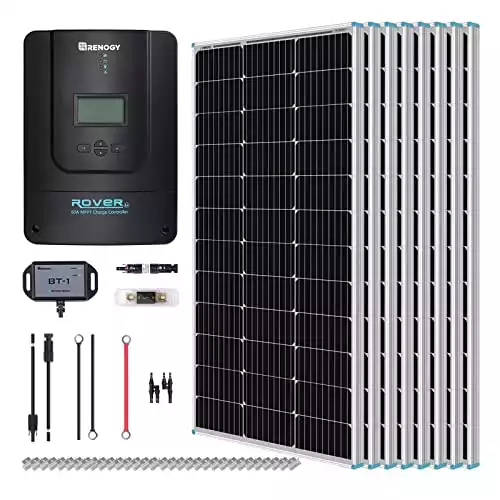

Renogy 800W Solar Panel Kit
  • 800W Monocrystalline solar panels
  • 60A MPPT Charge Controller
  • Cables, Z-brackets, and pre-drilled holes
CHECK LATEST PRICE
wiring a solar panel kit on top of an rv

How many solar panels do you need for an RV?

The number of solar panels you’ll need for your RV depends on a few things, such as how much power you want to generate and the size of your battery bank.

Typically, a 100-watt panel is enough to power only the most basic RV elements like lights. If you want more energy, then you’ll need to add more panels in order to increase the wattage of your system.

A RV solar kit typically comes with 400-800 watts of power, which is enough to run most energy-efficient RV appliances.

If you want an accurate estimate, then you should calculate the wattage of all the appliances, lights, and other devices in your motorhome. You can use a solar panel calculator to determine the solar panel system size that you need.

What can you power with RV solar?

RVs have both AC and DC power systems. Solar panels produce DC electricity and can be used to power small appliances and entertainment devices such as:

  • Lights
  • Water pump
  • Vent fan
  • TVs
  • Computers/tablets
  • Stereo systems
  • Cell phone chargers

Larger AC appliances – which plug in using a household wall socket – are not a good choice for RV solar systems because they require a lot of power. Even with a large solar panel setup, you will want to limit using power-hungry appliances. This includes:

  • Hair dryers
  • Air conditioners
  • Vacuum cleaners
  • Coffee pots
  • Dishwashers

RV generators are best for powering energy-intense appliances off-grid.

guide to choosing the best solar panels for an rv

What are the different types of RV solar panels?

When it comes to RV solar panels, there are three main types: monocrystalline, polycrystalline, and amorphous.

Monocrystalline panels are the most efficient and hold up well in high temperatures. They tend to be the more expensive option, but they’ll also last longer and provide you with more energy.

Polycrystalline panels are less efficient but more affordable. They’re slightly less durable than monocrystalline, but they’re still a reliable choice for RV solar systems.

Amorphous panels They are significantly less efficient- taking up more weight and space- and are more expensive per watt. They are durable, even when flexible, so you can often see them sewn into backpacks and cloth items.

The best solar panels for a motorhome are monocrystalline or polycrystalline panels because they are the most efficient and reliable.

components of an rv solar panel kit

What comes in an RV solar kit?

An RV solar kit typically comes with the following components:

  • Solar panels
  • Charge controller
  • Mounting brackets
  • Solar cables

Some RV solar kits come with batteries included, but that is not the norm. You may also want to purchase an inverter if you want to power AC appliances using a household wall socket.

Should you purchase a Solar kit with batteries?

If your RV already has a battery bank: There’s no need to upgrade. Batteries are expensive and have plenty of life. You can always do that at a later date.

If your RV does not have a battery bank: It makes sense to purchase a solar panel kit with batteries included. This is helpful because you’ll know all of the system parts are sized correctly and compatible.

Must-Have RV Solar Kit Accessories

RV solar panel kits come with nearly everything you need to power your camper. But if your motorhome is not pre-wired for solar, you may need to purchase some longer wires to run between the components.

There are also a number of other parts that will make the install process cleaner and improve solar panel efficiency.

Solar panel extension cable: Extra wire used to connect the solar panels to the charge controller.

Solar cable entry glands: These are little weatherproof parts that help route solar panel cables through the RV roof. They clean up the install by holding the wires in place and preventing leaks from getting inside.

Lap Sealant: Use this to weatherproof your install and fill any gaps or holes you may have made in the roof.

Cable clamps: Help with cable management on the roof and throughout your motorhome.

Adjustable tile mounts: Give you better solar panel efficiency. If you can tilt your panels directly towards the sun throughout the day, you can gain as much as 20% more energy out of the solar panels. These can be mounted with or without z-brackets.

Telescoping ladder: Use this to get on the roof of your RV or camper van if you don’t have a ladder installed. This is useful when tilting or cleaning the solar panels.

Extendable scrub brush: It’s imperative that the solar panels be kept clean from dust and debris to continue working properly. Extension brushes make this much easier to do.

solar panel kit installed on the roof of an rv motorhome

What is RV-ready solar?

Newer RVs come pre-wired for solar. That means the internal wiring between the solar panel to charge controller, and charge controller to battery are already in place.

You still need to purchase a solar panel kit for these to work. Essentially, this type of system just makes solar panels easier to install.

Can you make your own DIY solar panel kit?

Yes! You can make your own DIY solar panel kit for an RV. You’ll need to purchase the individual components from a hardware store or online and assemble them yourself.

This will require some lots of research and some electrical skills, so it’s not for everyone. But it is an option for those who are comfortable with electrical work and want to get the best bang for your buck.

How much does an RV solar Panel kit cost?

The price of an RV solar kit varies widely. Basic kits with a small panel and controller can cost a few hundred dollars. Larger systems with 600-800W, charge controllers, and batteries can cost up to $2,000 or more.

Ultimately, the cost depends on the size of your rig, how much power you need, and the type of components you’re using.

Where to place your solar panels on an RV

Solar panels are extremely sensitive to shade. Each of the little squares on your panels are wired in a way that if one of them is shaded, the whole row can’t produce energy. That means energy can be reduced by up to 90% if a certain 10% of the panel is covered.

Solar panel placement is critical in an RV. Make sure they are placed in a way that any vent fans, roof boxes, chimneys or air conditioners will not be casting a shadow on them throughout the day.

wiring rv solar panels in series vs parallel

How to wire your RV solar kit: Series vs Parallel

Solar panels are wired either in series or parallel.

  • Wiring solar panels in parallel keeps the voltage the same but increases the amperage going into the charge controller.
  • Wiring in series increases the voltage but keeps the amperage the same.

In most cases, by default, we recommend wiring your solar panels in series as long as your charge controller is able to handle high voltages (an MPPT controller).

Read this article to see some complete RV solar panel wiring diagrams.

FAQs

What are the popular RV solar panel brands?

Some of the most popular RV solar panel brands are WindyNation, Renogy, HQST, Newpowa, and ECO-WORTHY.

Can you run an RV air conditioner with solar?

Most solar panel systems are not large enough to run an air conditioner. You would need upwards of 10,000 Watts and a lot of battery power to accomplish this. We recommend investing in an RV generator if you need to run an air conditioner.

Do you need RV-specific solar panels?

No, there is no difference between RV-specific solar panels and regular solar panels. We recommend using RV-ready kits as they are easier to install, however you can use any type of panel and controller for an RV setup.

Are RV solar panel kits worth it?

RV solar panels are definitely worth investing in if you want to reduce your reliance on RV generators or campsite hookups. Solar kits take away the guesswork of designing your own DIY system and the components all work together correctly.

Do RV solar panel kits come with batteries?

No, most RV solar kits do not come with batteries. You will need to purchase a compatible battery separately and install it in your RV. We recommend deep cycle AGM or lithium ion batteries for RVs.

Best RV Solar Panel Kits Reviewed

BEST KIT WITH BATTERIES
400W WindyNation Solar Kit with Batteries
  • 100W (x4) Solar Panels
  • 30A PWM Charge Controller
  • 40ft. Solar cable, MC4 connectors, mounting brackets
  • 100Ah (x4) AGM Deep Cycle Batteries
CHECK LATEST PRICE

WindyNation Solar Panel Kits

WindyNation is more popular with the RV community. What we like most about their solar kits is that they come with battery upgrades. This ensures that all of your components are designed to work together without having to worry about incompatible components.

While their solar kits do not allow you to upgrade the charge controller, we think the kits are a great value for someone new to solar and the easiest way to get your system up and running.

Renogy

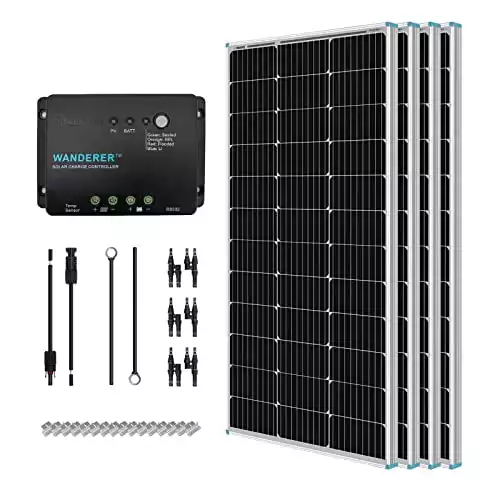

Renogy 400W Solar Panel Kit
  • 400W Monocrystalline panels
  • PWM Charge Controller
  • Cables, Z-brackets, Solar Y Branch Connectors and Pre-drilled holes
CHECK LATEST PRICE

Renogy RV Solar Panel Kits

Renogy makes a large selection of solar panel kits. They are one of the most popular companies for van lifers and offer different sizes and upgrade options.

You can pick the solar panel type, charge controller type and choose kits that come with more or less components.

One of the things to pay attention to is whether you’re buying a starter bundle, or a full RV kit. The starter bundles normally do not come with mounting brackets or connectors. They have the bare minimum of components and are the cheapest.

Renogy RV kits come with pretty much everything you need except the batteries.

One of the things we like most about Renogy is their straightforward instructions. Their kits come with simple wiring diagrams that lay out all of the components and they have excellent customer support to help you connect your system.

Installing a solar panel kit on your camper van or RV should follow the same steps as installing rigid solar panels listed above.

Kate is the lead content creator for ParkedInParadise.com and has spent over two years living in a camper van conversion. She has traveled through 48 US states and writes about van life, camping and RV living.
